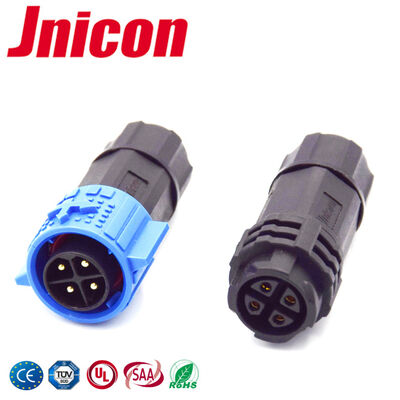

300V M19 Round Waterproof Connector Outdoor Power Connector 20A China

商品の詳細:

起源の場所:	中国深セン
ブランド名:	Jnicon
証明:	UL,TUV,CE,ROHS,CQC
モデル番号:	M19

お支払配送条件:

最小注文数量:	100 (10 組のサンプル)
価格:	negotiable
パッケージの詳細:	1.ビニール袋;2.カートン;3.顧客の要件に従って
受渡し時間:	3～5営業日
支払条件:	L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム
供給の能力:	10000/days

連絡先

詳細製品概要

防水レベル:

IP67

定格電流:

20A/300V 電源用

ケーブル仕様:

16-12AWG

企業分野:

産業オートメーション・新エネルギー

ハイライト:

300V M19 waterproof power connector

outdoor waterproof connector 20A

M19 round connector with warranty

Push Pull IP67 Waterproof Connector With 3 Pin Male Female Plug Connector

Features to 3 pin waterproof connector

Push pull locking connection mode
Protection level: IP67
Connection method: soldering(welding),screw terminal
Assembly: male plug with female plug
Certification: UL,TUV,RoHS,CQC,CE
Function : power extension
Color: black, yellow, blue.

M19 3 pin waterproof male female connector could be well used for LED lighting, power extension,Audio video, elctrical equipments, automation machines,robot, ebike, motor etc.

M19 3 pin connector specification

Specifications:
Connecting mode:	Push pull locking waterproof connector
Core number:	3 pin
Connector type :	Assembly Panel mount connector
Connector color:	Black, blue, yellow
Waterproof level:	IP67
Cable specification:	20AWG-12AWG
Cable diameter range:	4.5mm-11mm
Contact diameter*No.	Φ1.0-Φ2.4
Rated current (A):	20A
Operating voltage (AC.V.rms):	500V
Withstand voltage (AC.V)1min:	1500V

Application industries:
Stage equipment	The smart grid	LED lighting
Medical equipment	Battery	Automation
Solar energy equipment	Ship equipment	Agriculture

3 pin waterproof connector's benefits :

1. Great suitable for industrial power connection, LED fixtures, Telecommunication, Marin, grating, external wiring, CCTV, factory automation control, other places need waterproof power extension use.

2. Easy connection, convenient install, DIY tools, and no need to pinch-off cable electrical plastic sets, just unscrew the ends of waterproof connector, connect the wire correctly: N for Neutral wire, G for Ground wire, L for live wire.
