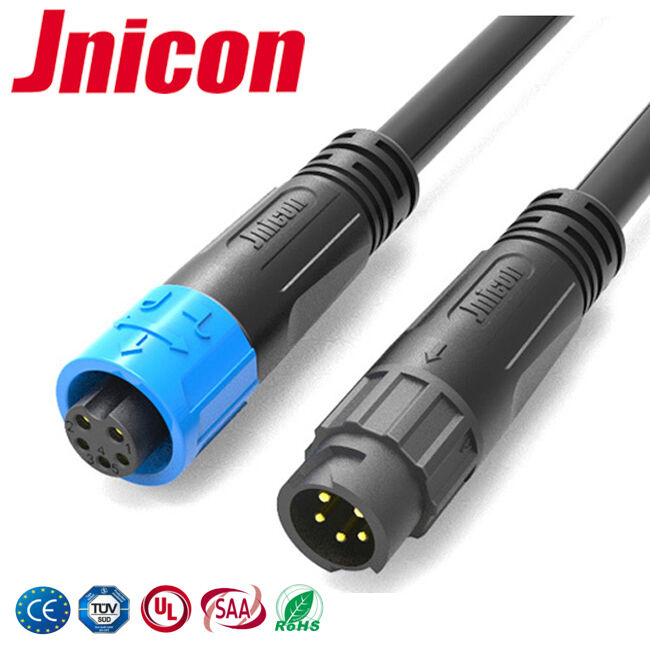

Name: M12 IP67 Waterproof Outdoor Wire Connectors Quick Lock Molded Power Connector
Brand: Shenzhen Jnicon Technology Co., Ltd.
SKU: M12
Price: 2.20 USD
Availability: InStock

ホーム製品防水LEDのコネクター

M12 IP67 Waterproof Outdoor Wire Connectors Quick Lock Molded Power Connector

商品の詳細:

起源の場所:	中国深セン
ブランド名:	Jnicon
証明:	UL , CQC , CE ,ROHS
モデル番号:	M12

お支払配送条件:

最小注文数量:	100 (10 組のサンプル)
価格:	negotiable
パッケージの詳細:	1.ビニール袋;2.カートン;3.顧客の要件に従って
受渡し時間:	3〜5日
支払条件:	信用状、D/A、D/P、T/T、ウェスタンユニオン、MoneyGram、Paypal
供給の能力:	10000 / 日

連絡先

詳細製品概要

製品名:	M12 5pinコネクタ	電流定格:	10A+2A
定格電圧:	125V+60V	IPレベル:	IP67
材料:	PA66、UL94-V0	タイプ:	組立現場プッシュロックコネクタ
ハイライト:	M12 waterproof wire connectors , quick lock power connector , IP67 outdoor LED connectors

5 Pole Waterproof Data Connector Quick - Lock High Durability Corrosion Resistance

Description of Waterproof Data Connector

1. 5 ( 2+3 )Pin connector , 2pin power supply , 3pin data supply .

2. Male and female electrical connector with cable .

3. Electrical wall washing waterproof data connector .

4. Optinal color for different environment .

The Reason for Choosing Our Product

1. We can provide the M12 5pin waterproof data connectors with great quality and best price
Free sample can be provide for testing first , then decide if make an order
We accept custom - made , whether it is connector , cable , carton or other special requirement .
Approved by UL , CE , CQC and other units validation test .

Specification of M12 5Pin Waterproof Connector

Product name	M12 5Pin connector
Current	10A+2A
Voltage	125V+60V
Contact diameter X number	φ1.5 +φ1.0
Withstanding voltage	1000V
Protection level	IP67
Cable Specification	1.0+0.5mm2
Diameter range	MAXφ9.0mm
Operating temperature	-40℃ - 105℃
Connecting mode	Qick - locking
Insulating parts	High - performance engineering plastics
Material of copper needles	Copper alloy
Flame - resistant rating	UL94 - V0
Color	Blue black
Application	Wall washing lgiht / tube light
Warranty	5 Years
