Name: 20A M19 IP68 3 Pin Connector Gold Plated Male And Female Waterproof
Brand: Shenzhen Jnicon Technology Co., Ltd.
SKU: M19
Price: 2.20 USD
Availability: InStock

ホーム製品高い現在の防水コネクター

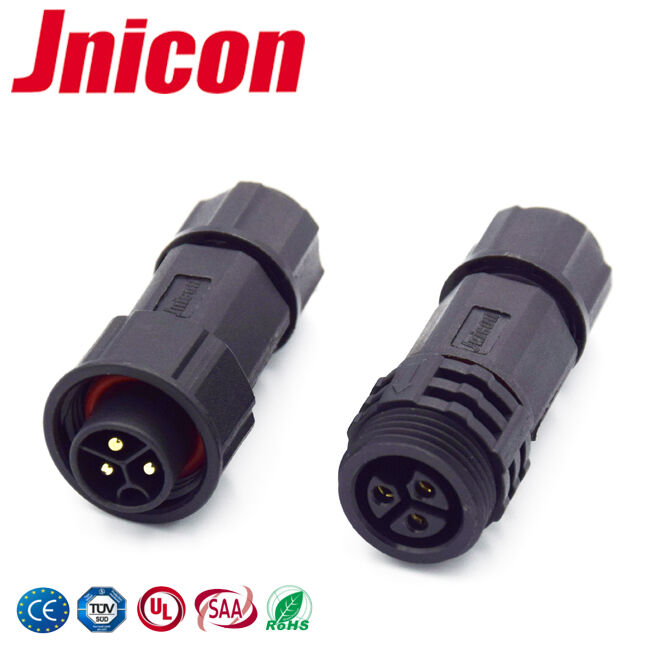

20A M19 IP68 3 Pin Connector Gold Plated Male And Female Waterproof

商品の詳細:

起源の場所:	深セン、中国
ブランド名:	Jnicon
証明:	TUV,UL,CE,CQC
モデル番号:	M19

お支払配送条件:

最小注文数量:	100 (10 組のサンプル)
価格:	negotiable
パッケージの詳細:	1.ビニール袋;2.カートン;3.顧客の要件に従って
受渡し時間:	3〜5営業日
支払条件:	T/T、ウェスタン・ユニオン、D/P、D/A、L/C、MoneyGram
供給の能力:	10000セット/日

連絡先

詳細製品概要

コントクトピン:

3ピン電線対電線

電流/定格電圧:

20A/300V

接続モデル:

スクロールロック

ケーブル範囲:

3～11mm

ハイライト:

20A waterproof connector gold plated

M19 IP68 waterproof connector 3 pin

high current waterproof connector male female

IP68 Waterproof 3 Pin Wire To Wire 20A Circular Connectors For LED Display

Description of IP68 Waterproof connectors

Screw locking waterproof connector is a great choice for your application, thanks to its thread locking structure, the protection level could meet IP68. If you are looking for IP68 waterproof connectors, screw locking M19 connectors will be a perfet option. it is widely used in many application. such as:

Communications Application
product coding machines
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Features:

Rated current: 20A/10rms.
2-4PIN power supply, 5-9PIN signal is optional.
IP67/68 rating
Voltage rating: 300V
Cable Range: 3~11mm

Operation Parameters
Voltage Rating	300VAC max
Current Rating	20A max
Min Wire Size OD	3.0mm ~ 6.5mm
Max Wire Size OD	6.5mm ~ 10mm
Max.Cable Cross Section Area	0.3mm2 ~ 2.5mm2

Electrical Parameters
Number of Poles	2Pin power 4Pin signal
Current Rating	10A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Main characteristics

Sealed against dust and fluid (IP68)
Vibration resistance,impact resistance,stretching resistance
socket with cover
Cable assembly support
Customized cable size and length

FAQ

1. Q: What type waterproof connector do you have?

A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.

2. Q: How to buy your products?

A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.

3. Q: How to contact with you?
A: Please give us email,we have worked for this industry more than 10 years,So we can catch your problem,and solve it in a short time.if you have any question please feel free to let us know.
