Name: 300V Electrical Multi Pin Connectors Waterproof 2+4 Pin , High-Temperature Resistant Plastic
Brand: Shenzhen Jnicon Technology Co., Ltd.
SKU: M16
Price: 2.20 USD
Availability: InStock

ホーム製品防水多ピンコネクタ

300V Electrical Multi Pin Connectors Waterproof 2+4 Pin , High-Temperature Resistant Plastic

商品の詳細:

起源の場所:	深セン、中国
ブランド名:	Jnicon
証明:	TUV,UL,CE,CCC
モデル番号:	M16

お支払配送条件:

最小注文数量:	100 (10 組のサンプル)
パッケージの詳細:	1.ビニール袋;2.カートン;3.顧客の要件に従って
受渡し時間:	3〜5営業日
支払条件:	T/T、L/C、D/A、D/P、ウェスタンユニオン、マネーグラム
供給の能力:	10000セット/日

連絡先

詳細製品概要

コントクトピン:

2+4ピン電源&信号

保護レベル:

IP67

材料:

PA66

難燃性等級:

UL94-V0

ハイライト:

300V waterproof multi pin connectors

high-temperature resistant plastic connectors

2+4 pin electrical connectors

Blue Black Color 10A Waterproof 2Pin Power Connector 4Pin Data IP67 Waterproof Connector

Application industries

Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

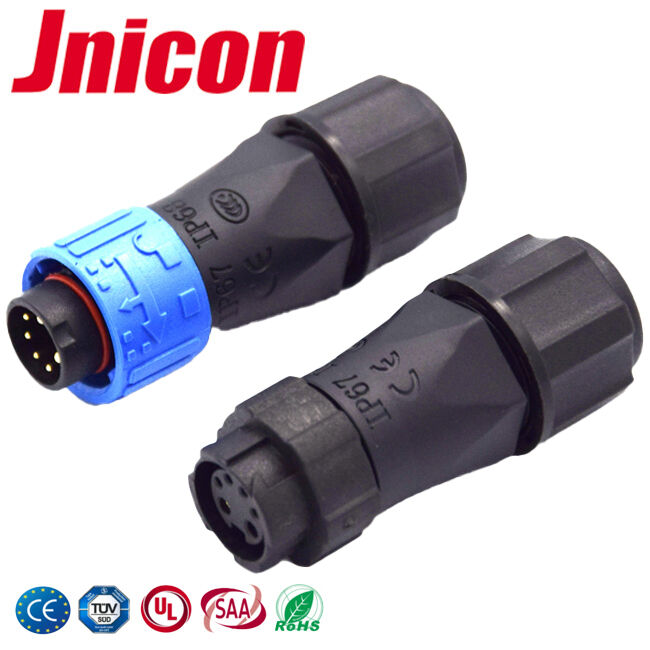

M16 6pin male plug female socket is a good connection model, widely used in LED lighting, especially in outdoor application, even underwater.

Description of 6Pin Waterpoof connnector

6 Pin Ac Power Socket
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
Industrial Electrical Plug socket
socket with cover
6 pin wire to board waterproof connector

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	300VAC max
Current Rating	10A max
Min Wire Size OD	3.0mm ~ 5.0mm
Max Wire Size OD	6.5mm ~ 9.0mm
Max.Cable Cross Section Area	0.5mm2 ~ 1.5mm2
