| 起源の場所: | 中国 |
| ブランド名: | Jnicon |
| 証明: | TUV, UL, 3C, CE, ROHS, ISO90001 |
| モデル番号: | M19 |
| 最小注文数量: | 100 (10 組のサンプル) |
|---|---|
| 価格: | negotiable |
| パッケージの詳細: | 1. ビニール袋 |
| 受渡し時間: | 3～5日 |
| 支払条件: | L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム |
| 供給の能力: | 10000組/日 |
| 製品タイプ: | 12のピン防水プラグのソケットを締める押し | 電流定格: | 5A |
|---|---|---|---|
| 保護レベル: | IP67 | 定格電圧: | 60V |
| ケーブルゲージ: | 24~20AWG | 接触の直径: | ∅1.0 mm |
| ハイライト: | 5A IP67 waterproof cable connector,12 pin M19 data plug,outdoor waterproof panel mount connector |
||

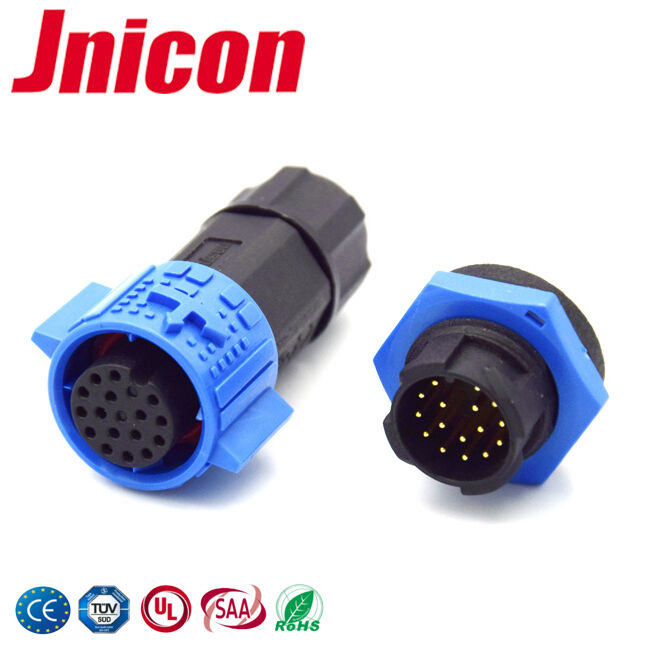

Push Locking 12 Pins Waterproof Plug Socket Connector IP67 Panel Mount
More details of 12 Pin Waterproof plug with socket:
• The waterproof rating is IP67, waterproof plug socket connector of current/ voltage are 5A/60V.
• multi-pins(2-22 pins) are available and for varies industrial demands
• gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
• Screw locking style and push locking,easy to assemble.
• High current application safety and stable wire.
The specifiction of 12 pin waterproof plug socket connector
| 12 pin waterproof plug socket connector | |
| Connecting mode | push Lock connect |
| Protection level | IP67 |
| Contact diameter×Qty | Φ1.0×12 |
| Current rating(A) | 5 A |
| Operating voltage | 60V |
| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~105°C |
| Method of connecting cable | Solder |
| Prevent the combustion level | UL94-V0 |
| Material | |
| Shell&insulated parts | High performance engineering plastics |
| Contact pin | Copper alloy(gold-plated) |
| Spring | Stainless steel |
| Main characteristics | |
| Sealed against dust and fluid (IP68/IP67) | |
| Vibration resistance,impact resistance,stretching resistance | |
Application:
Waterproof plug socket connectors could be widely used in indoor & outdoor led lighting, LED screen, audio visual equipment, industrial and testing equipment, electricl power connection, landscape lights,underwater lights,equipments etc.
It can effectively resist vibration and shock, and can prevent broken connection caused by pulling cables. It is absolutely reliable and convenient to plug in very limited space.
the copper needles of the connector is adopted gold-plated technology,which can resist corrosion and suitable for high/low temperature, current transmission is more stable and safety.
Your drawings and samples are warm welcomed since our professional R&D team can help to customize the items you want.
Product detail picture
