| 起源の場所: | 中国 |
| ブランド名: | Jnicon |
| 証明: | TUV, UL, 3C, CE, ROHS, ISO90001 |
| モデル番号: | RJ45 防水コネクタ |
| 最小注文数量: | 100 (10 組のサンプル) |
|---|---|
| 価格: | negotiable |
| パッケージの詳細: | 1. ビニール袋 |
| 受渡し時間: | 3～5日 |
| 支払条件: | L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム |
| 供給の能力: | 10000組/日 |
| 製品タイプ: | RJ45ソケットプラグ防水パネルマウントコネクタ | コンタクト数: | 8ピン |
|---|---|---|---|
| 接触抵抗: | <60mΩ | 保護レベル: | IP65(キャップ付)/IP44 |
| ハイライト: | UL94-V0 waterproof RJ45 connector,IP65 panel mount RJ45 socket,500V waterproof RJ45 plug |
||

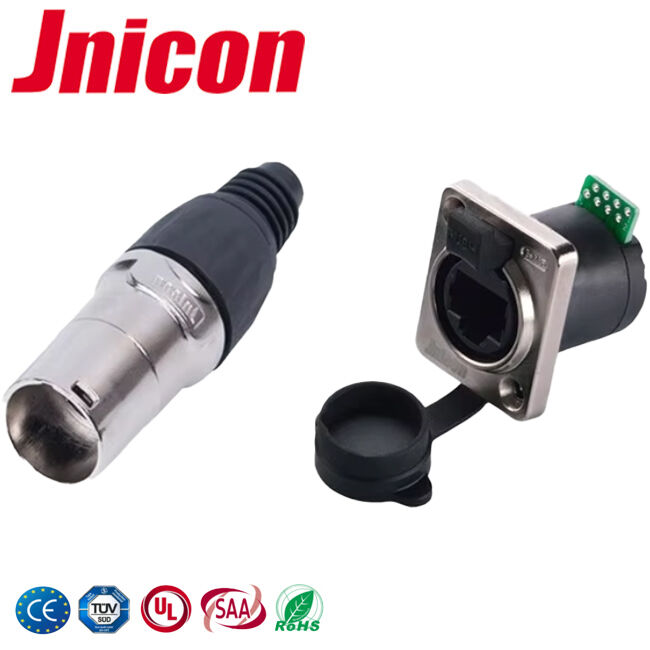

8 Pin Metal House RJ45 Waterproof Connector A/B Type Pin Header Panel Connector
The feature of RJ45 Socket Plug Waterproof Connectors A/B Type:
• According to the standard conforms to D grade or CAT3e, compatible with CAT5e.
• The withstanding voltage of IP65 RJ45 waterproof connector are 500V.
• Bayonet locking style, Good sealing. Push-pull design, safety lock system, straight-through or PCB transfer for optional installation.
• Shielding system - high frequency noise immunity and electromagnetic interference protection.
• gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise
• Waterproof and non-waterproof design, The waterproof rating is IP44(no dust cover) or IP65(with plastic cover), IP44 is used for indoor equipment, IP65 is used for outdoor equipment and with dust cover.
• panel mount connectors, metal housing and locking system are available.
Four types can be choosed:
►straight type dual panel connector
►PCB signal panel connector
►90 degree panel connector
►A/B type pin header panel connector
The specifiction of RJ45 plug socket waterproof connector
| Product Specifications | |
| Connecting mode | plug/unplug Lock connection |
| Protection level | IP65/IP44 |
| Contact diameter×Qty | 8 Pin |
| Withstand voltage(AC.V)1min | 500V |
| Contact resistance | <60mΩ |
| Temperature rating | -40°C~80°C |
| Prevent the combustion level | UL94-V0 |
| Material | |
| Shell&insulated parts | High performance engineering plastics |
| Hardware metal | copper alloy |
Feature of RJ45 waterproof connector:
| Mechanical | |||||
| A | Mating/Unmating force | Mating & Unmating Force: 10~30N Test data:22N,23N,25N,26N,23N | |||
| B | Life test | Mating & Unmating 500 cycles | |||
| Material | |||||
| A | Contact Plating | 1u" gold plating | |||
| B | Contact material | Brass (C3604) | |||
| C | Housing material |
PA66 |
|||
Product material feature:
• the copper needles of the connector is adopted gold-plated technology,which can resist corrosion and suitable for high/low temperature, current transmission is more stable and safety.
• Apply in harsh environment(outdoor and indoor) is still perfect.
• Your drawings and samples are warm welcomed since our professional R&D team can help to customize the items you want.
• The rugged connection system provides a solution for broadband data transmission in harsh environments.
• The connector does have a crystal head.
Product detail picture
Packing and Delivering
