| 起源の場所: | 中国 |
| ブランド名: | Jnicon |
| 証明: | UL/TUV/CQC/CE |

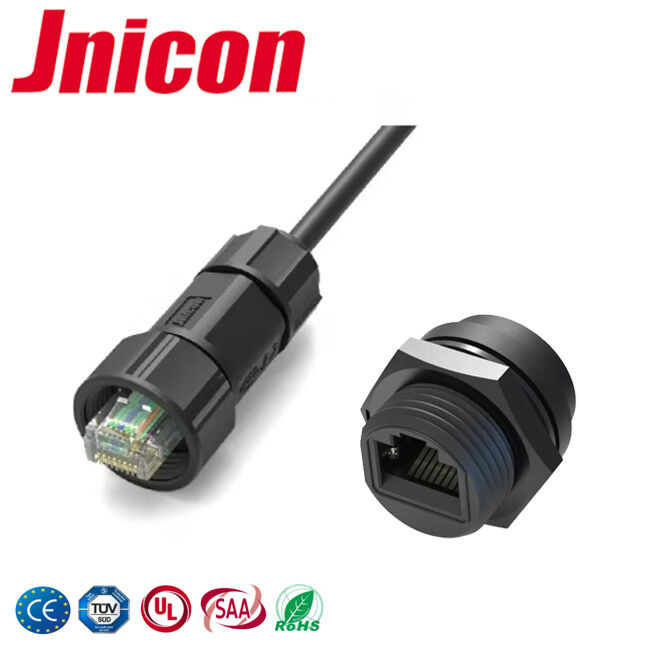

| モデル番号: | Ethercon RJ45 防水コネクタ |
| 最小注文数量: | 100 (10 組のサンプル) |
|---|---|
| 価格: | negotiable |
| パッケージの詳細: | 1.ビニール袋; 2.カートン; 3.顧客の要件に従って |
| 受渡し時間: | 3～5営業日 |
| 支払条件: | L/C、T/T、ペイパル、ウェスタンユニオン、L/C、D/A、D/P、T/T |
| 供給の能力: | 10000個/日 |
| 信号伝送速度: | カテゴリー5e/カテゴリー6 | 証明書: | UL/TUV/CE/ROHS |
|---|---|---|---|
| 接続モード: | プラグを抜きます | コントクトピン: | 銅合金(金メッキ) |
| ハイライト: | UL PA66 nylon M19 RJ45 connector,screw locking waterproof RJ45 connector,Cat5e waterproof M19 connector |
||
Description of CCTV Waterproof Connectors For signal
Main Characteristic:
1. Compliance with D level or CAT 5e standard of EIA568B and ISO/IEC11801,RJ45 connectors compatible CAT5e,data transfer rate reach 10GBIT/S
2. Multi-style connecting modes:straight dual etherne port, 90 degree, PCB type and pin header type available
3. Applicable for harsh environments.
4. Cable jacket with solid diecasted shell and unique dual-clip-clip wire saddle.
5. Sheath of cable applicable for common RJ45 plugs.
6. Waterproof and non-waterproof design,protection level IP65/IP68 if waterproof and dustproof.
7. Electroplated shell against wind and rain.
8. Shielding system with high frequency noise immunity and electromagnetic interference protection.
Application
| Technical Parameters | |
| Connecting mode | Quick push pull Locking |
| Protection level | IP65 |
| Cable specification | 0.15mm2~0.2mm2 /26~24AWG |
| Diameter range | Φ5.5mm ~Φ7mm |
| Current rating(A) | 5A |
| Contact resistance | <30mΩ |
| Insulation resistance | >500MΩ |
| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~80°C |
| Prevent the combustion level | UL94-V0 |
| Materials | |
| Insulated parts | High performance engineering plastics |
| Hardware metal | Zinc alloy(pearl hard chromium) |
| Contact pin | Copper alloy(gold-plated) |
| Spring | Stainless steel |
| Sealing | Silica gel |
1. Q: What if I need the products have some differences on specification from yours?
A: Any requirement from customers will be considered since we stick customer service to the centre.The products you looking for can be customized by our professional R&D team.What's more,it's honored for us to offer you samples. By the way,samples will be free of charge while you bear the freight.
2. Q: How to contact with you?
A: Please give us email,we have worked for this industry more than 10 years,So we can catch your problem,and solve it in a short time.if you have any question please feel free to let us know.
3. Q: Can I visit your factory?
A: Yes,It will be better for us face to face to talk about the project.And I am sure you will be confident in us after you visit our factory.
4. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.
