シンセンJniconの技術Co.、株式会社。
専門の防水コネクターの製造業者
セールス＆サポート:
 |
| 起源の場所: | 中国 |
| ブランド名: | Jnicon |
| 証明: | TUV, UL, 3C, CE, ROHS, ISO90001 |
| モデル番号: | RJ45 防水コネクタ |
| 最小注文数量: | 100 (10 組のサンプル) |
|---|---|
| 価格: | negotiable |
| パッケージの詳細: | 1. ビニール袋 |
| 受渡し時間: | 3～5日 |
| 支払条件: | L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム |
| 供給の能力: | 10000組/日 |
| 保護レベル: | IP44/IP65 | コンタクト数: | 8 |
|---|---|---|---|
| 接触抵抗: | <60mΩ | 耐電圧: | 500V |
| 納期: | -25℃～80℃ | 製品タイプ: | 二重イーサネット ポートRJ45の防水コネクター |
| ハイライト: | IP44 RJ45 waterproof connector,bayonet lock RJ45 connector,alloy copper waterproof RJ45 connector |
||

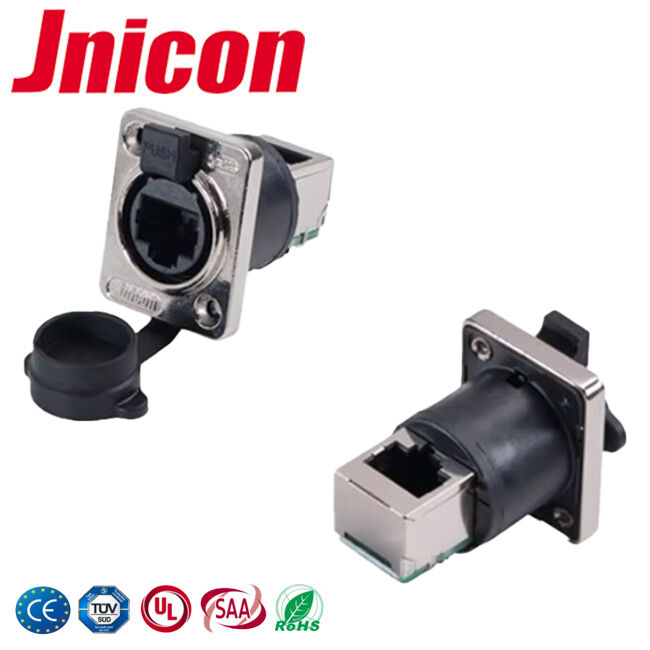

IP44/IP65 Bayonet Lock Connect RJ45 Waterproof Connector Alloy Copper 500V
The feature of Dual Ethernet Port RJ45 Waterproof Connector:
• The withstanding voltage of IP65 RJ45 waterproof connector are 500V.
• Bayonet locking style, Good sealing. Push-pull design, safety lock system, straight-through or PCB transfer for optional installation.
• According to the standard conforms to D grade or CAT3e, compatible with CAT5e.
• panel mount connectors, metal housing and locking system are available.
• Shielding system - high frequency noise immunity and electromagnetic interference protection.
• Apply in harsh environment(outdoor and indoor) is still perfect.
• Our waterproof connector have protection level: IP65/IP44.
The specifiction of Multi Pin Waterproof Connector
| Product Specifications | |
| Connecting mode | bayonet Lock connect |
| Protection level | IP65/IP44 |
| Contact diameter×Qty | 8 Pin |
| Withstand voltage(AC.V)1min | 500V |
| Contact resistance | <60mΩ |
| Temperature rating | -40°C~80°C |
| Method of connecting cable | Solder |
| Prevent the combustion level | UL94-V0 |
| Material | |
| Shell&insulated parts | High performance engineering plastics |
| Hardware metal | Zinc alloy |
| Spring | Stainless steel |
Application:
Four types can be choosed:
straight type dual panel connector
PCB signal panel connector
90 degree panel connector
A/B type pin header panel connector
Product material feature:
• the copper needles of the connector is adopted gold-plated technology,which can resist corrosion and suitable for high/low temperature, current transmission is more stable and safety.
• gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise
• Your drawings and samples are warm welcomed since our professional R&D team can help to customize the items you want.
Product detail picture
