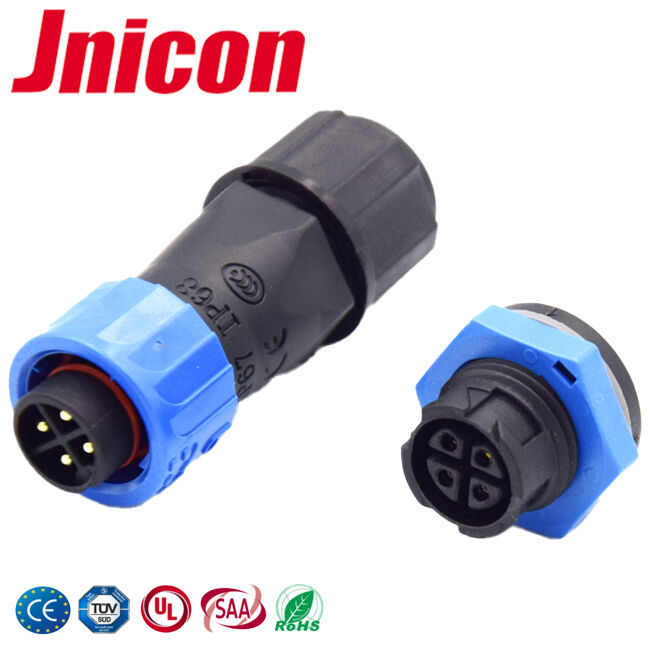

IP68 10A 防水はんだコネクタ パネルマウントネジ 電気M16コネクタ

IP68 10A 防水はんだコネクタ パネルマウントネジ 電気M16コネクタ

  • IP68 10A 防水はんだコネクタ パネルマウントネジ 電気M16コネクタ
IP68 10A 防水はんだコネクタ パネルマウントネジ 電気M16コネクタ
商品の詳細:
起源の場所: 中国
ブランド名: Jnicon
証明: UL,TUV,CE,ROHS,CQC
モデル番号: M16
お支払配送条件:
最小注文数量: 100 (10 組のサンプル)
価格: negotiable
パッケージの詳細: 1.ビニール袋;2.カートン;3.顧客の要件に従って
受渡し時間: 3~5営業日
支払条件: L/C、D/A、D/P、T/T、ウェスタンユニオン、
連絡先
詳細製品概要
性別: オス メス プラグ ソケット ポーランド人いいえ。: 2極、3極、4極が利用可能
防水レベル: IP68 定格電流: 10アンパール
保証: 5年 材料: PA66、UL94-V0
ハイライト:

IP68 防水M16 電気コネクタ

,

10A パネルマウントネジコネクタ

,

保証付き防水はんだコネクタ

IP68 10A 防水溶接器 パネルマウント スクロール電気 M16 接続器



主要な特徴



  • 耐腐食性や電気性も高い
  • 導電性は温度上昇に効果的に対応します
  • スクロールロックコネクタ,操作と設置が簡単
  • 作業停止状態での防塵カバー設計
  • 定電流は10アンプ
  • 保護レベル:IP68



テクニカルデータ



コネクタタイプ: 男性 女性接続器
接続材料: メタルスクリュー
防水レベル: IP68
キャベルの仕様: 20AWG-18AWG
ケーブル直径範囲: 4.5mmから11mm
定位電流 (A): 10A
動作電圧 (AC.V.rms): 500V



2ピン,3ピンと4ピン,金属のスクリューより耐久性があり,耐腐蝕性M16 B型は,壁洗濯機ライトの非常に経済的なモデルです壁洗濯機バー



材料



シェルと隔離部品: 高性能エンジニアリングプラスチック
コンタクトピン: 銅合金 (金付)
春: ステンレス鋼
密封: シリカゲル



UL承認された材料とコネクタを常に交換する必要がないため,あなたのアプリケーションの長い作業時間と安定性を確保します.5年間の保証が提供されています.



人気アプリ



  • 舞台機器
  • スマートグリッド
  • LED照明
  • LEDディスプレイ
  • 医療機器
  • バッテリー充電
  • 自動化
  • 太陽光発電設備
  • 船舶の装備
  • 農業
